THE TECHY BIT...
-
NEW FOR 2021

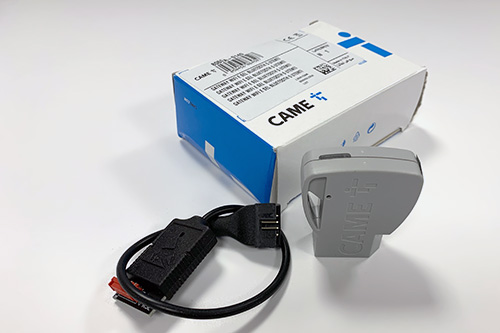

PLUGIN WIFI GATEWAY
- Super-fast set-up.
- Connects the automation to Connect cloud using home WiFi.
- Control up to three CAME operators.
- Can operate as a stand alone bluetooth device with activation for up to five devices.
- Connects directly into the dedicated port on the board or via the RSE slot.
- Compatible with Amazon Alexa & Google Home.
- Plug and play.
Best used when the automation is close to home’s router and can recieve a strong WiFi signal.
-
GSM OPTION

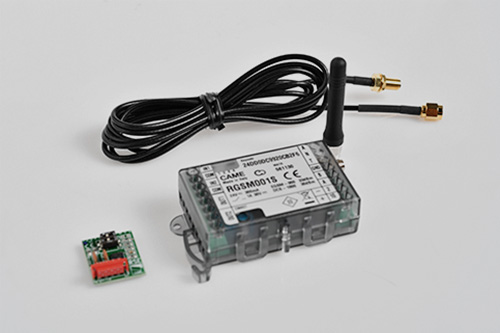

RGSM GATEWAY
- Flexible solution that works well in isolated or public areas.
- Uses a GSM SIM card & GPRS (2G) to connect to the internet - very low data usage.
- Control up to to three CAME (CRP) panels & two third party (non-CRP) devices.
- Two models available: STAND-ALONE version, for use with only one automation or MASTER version for communicating with multiple systems using up to three additional radio slave modules.
Best used when the automation is too far from the home’s router to receive a strong WiFi connection.
-
WIFI / ETHERNET OPTION

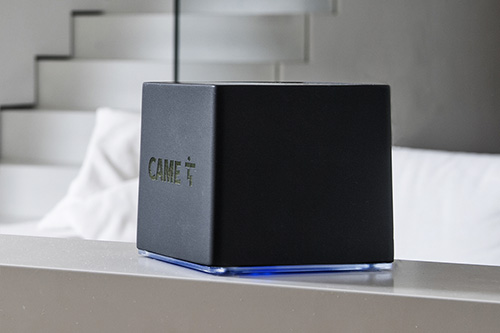

QBE GATEWAY
- Super-fast set-up.
- No need for mobile signal - connects directly to your home’s router via either LAN cable or WiFi.
- DHCP or static IP address - no IP changes, no DDNS, no port forwarding required for standard installation.
- Can communicate with up to five radio slave modules over the radio frequency connection, up to 100m away.
- Two models available: Ethernet/WiFi Automation only version or Ethernet/WiFi Full Smart Home version.
Best used when the automation is close to home’s router and can recieve a strong WiFi signal.
-
NEW FOR 2021

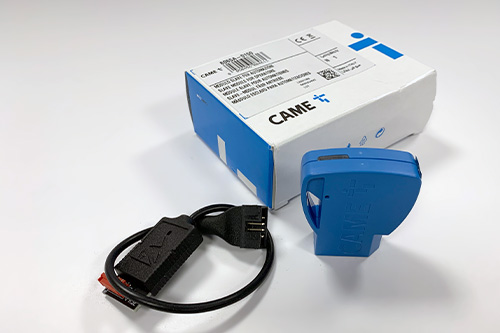

PLUGIN RADIO SLV MODULE
- Connects directly to the automation, making an 868.35 MHz radio-relay link with the QBE and RGSM gateways.
- Easy to connect directly into board using the dedicated port on the board or via the RSE slot.
- Used with the RSLV and connected directly to the automation, making an 868.35 MHz radio-relay link with the QBE/RETH.
- Communicates wirelessly up to 100m with the QBE or RGSM.
- Easy third-party activation & functional switching.
- Plug and play
Best used when you are trying to connect third party products. Must be used in conjunction with a gateway.
-
Expand the system

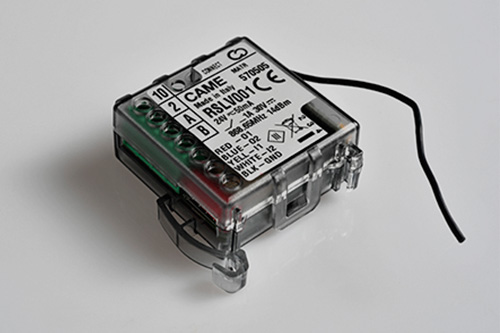

RSLV MODULE
- Can only be used in conjunction with the QBE or RGSM master gateways.
- Fitted to the control panel for the automation.
- Each module can control up to to three CAME (CRP) panels & two third-party (non-CRP) devices.
- Expand the system by adding up to three Radio Slave (RSLV) Modules.
- Communicates wirelessly up to 100m with the QBE or RGSM.
- Easy third party activation & functional switching.
- Incredibly small size.
Best used when you are trying to connect third party products. Must be used in conjunction with a gateway.
